DUAL 10IN LOW-PROFILE STAGE MONITOR
VTX-M20
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2/3/5 Years WARRANTY
DUAL 10" LOW PROFILE PROFESSIONAL STAGE MONITOR
VTX-M20 premium, tour grade high-performance low-profile professional stage monitor.
VTX-M20 premium, tour grade high-performance low-profile professional stage monitor.
DUAL 10" LOW PROFILE PROFESSIONAL STAGE MONITOR
VTX-M20 premium, tour grade high-performance low-profile professional stage monitor.
VTX-M20 premium, tour grade high-performance low-profile professional stage monitor.
FEATURES
- Elegant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver

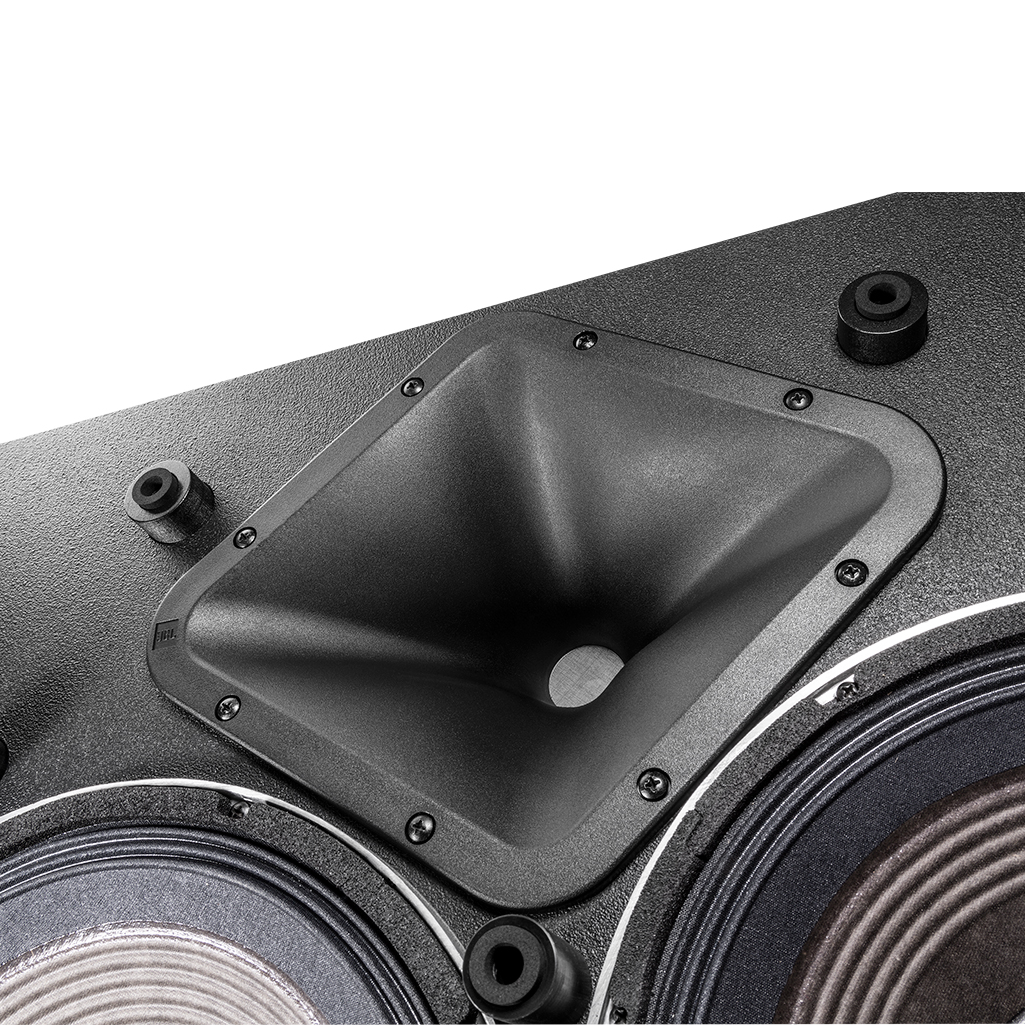

- 60x60 High Frequency Waveguide featuring JBLs patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
SPECIFICATIONS
- Frequency Range (-10 dB) 55 Hz 19.5 kHz
- Coverage Pattern (-6 dB) Horizontal: 60; Vertical: 60
- System Input Power Rating1 Passive: 1250 W Continuous (IEC / 100 hour)
- Active: LF: 1250 W Continuous (IEC / 100 hour)
- HF: 100 W Continuous (IEC / 100 hour)
- Maximum Peak Output2 136dB (Preset: VTX M20 FR)
- System Latency3 3.33ms
- System Processing Crown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD
- System Impedance Passive: 4 Ohms
- Active: LF: 4 Ohms, HF: 8 Ohms
- Low Frequency Transducer 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled
- High Frequency Transducer 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
- Monitor Angle 30 degrees
- Construction 18 mm, 11-ply Finnish birch plywood
- Grille Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

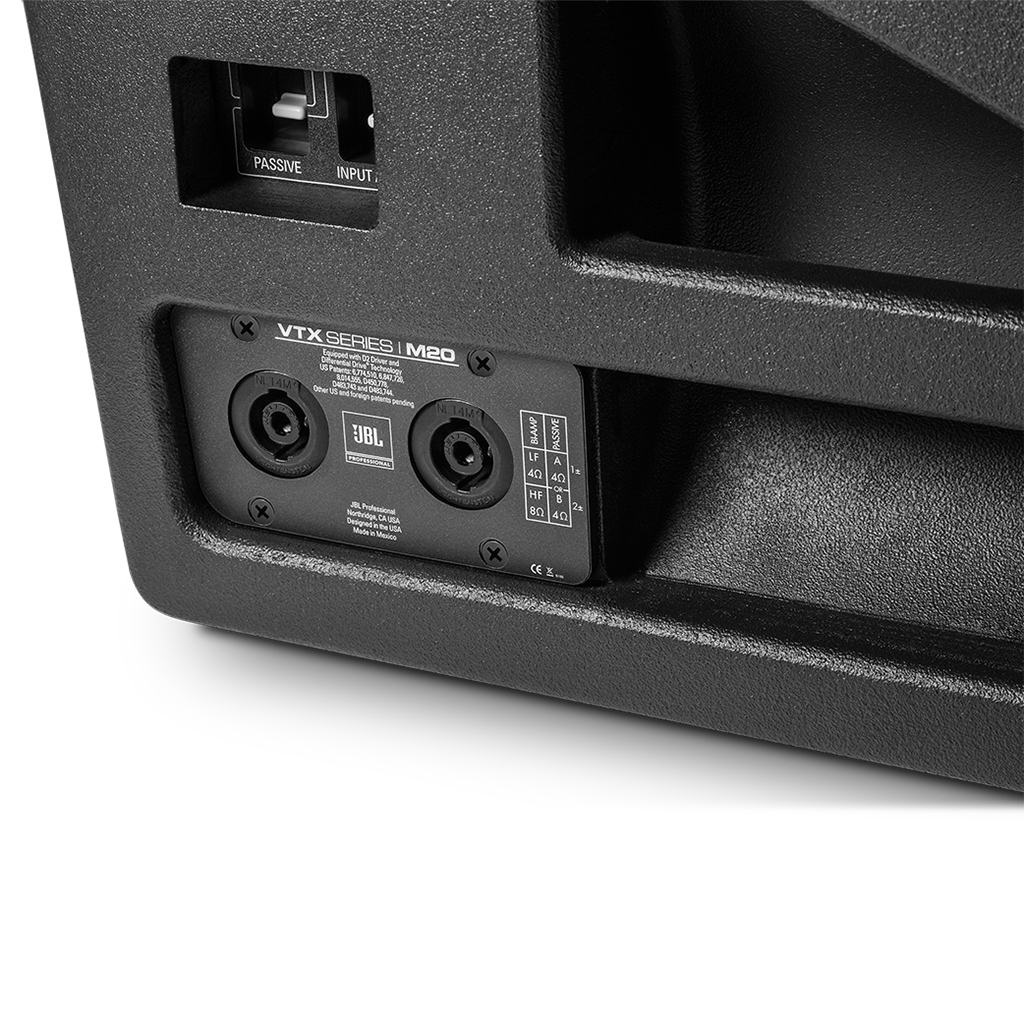

- Input Connectors Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ±
- Active: Neutrik Speakon NL-4 (4x): Pins 1 +/(LF) | Pins 2 +/(HF)
- Dimensions (H x W x D) 342.9 mm x 575.0 mm x 515.3 mm
- Net Weight 23 kg
