UNIVERSAL TRUSS/PIPE ROTATING CLAMP ADAPTER
VTX-RC500
IN STOCK
Delivery in 2-3 days within NZ
2 Years WARRANTY
SPECIAL DEAL 50% discount - GET IN QUICK!
The VTX RC500 is a universal truss/pipe clamp adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of ...
The VTX RC500 is a universal truss/pipe clamp adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of ...
SPECIAL DEAL 50% discount - GET IN QUICK!

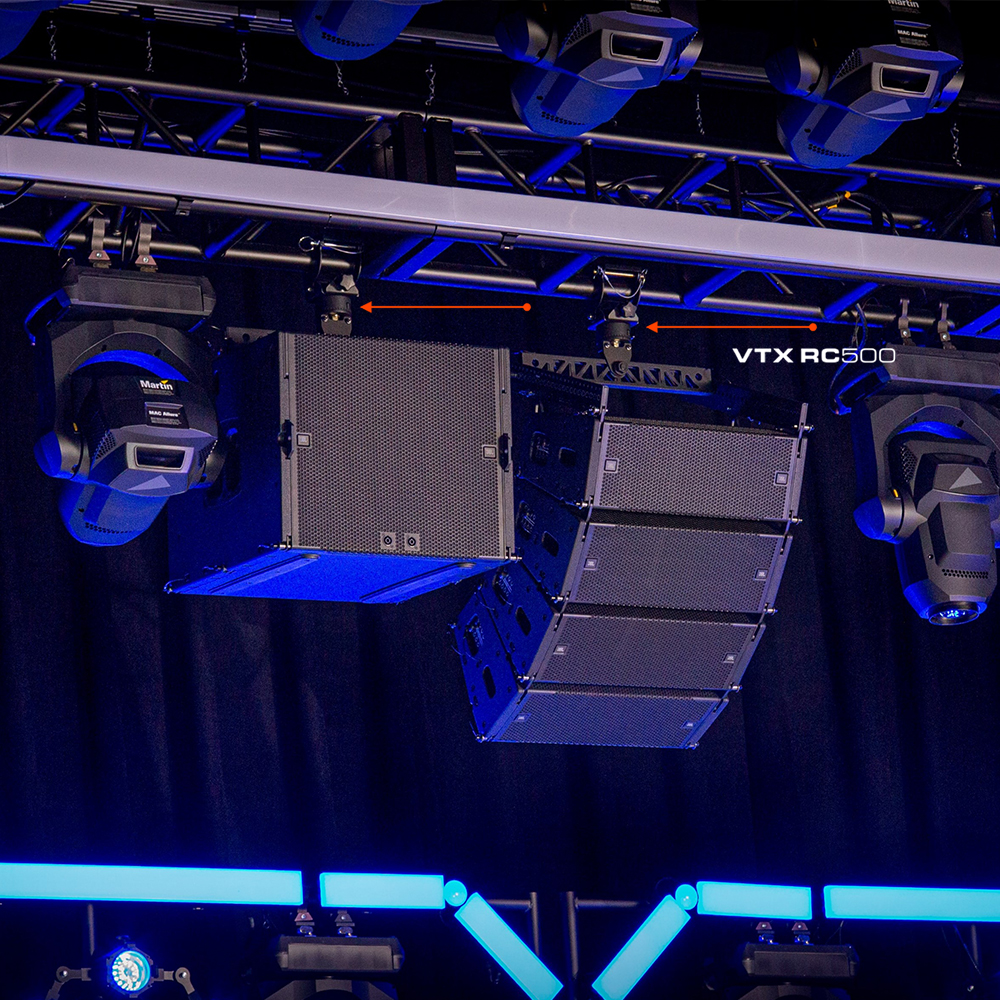

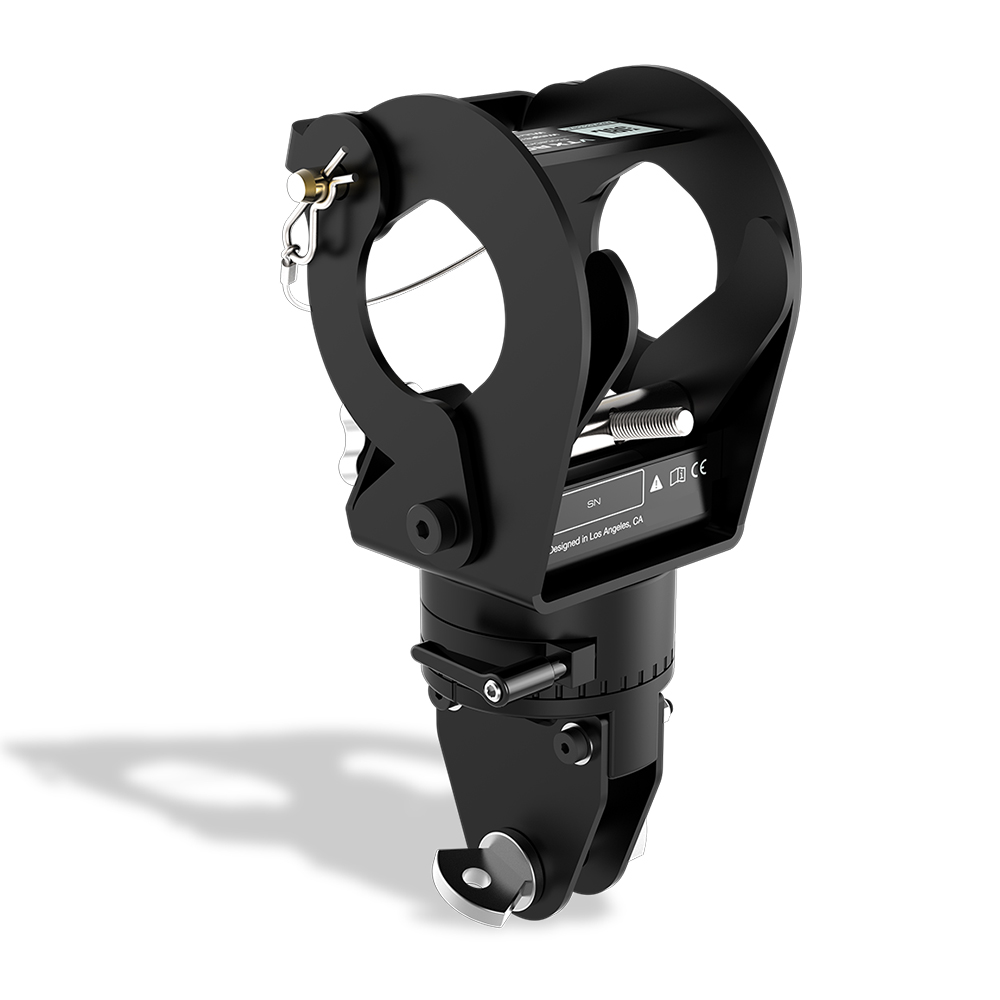

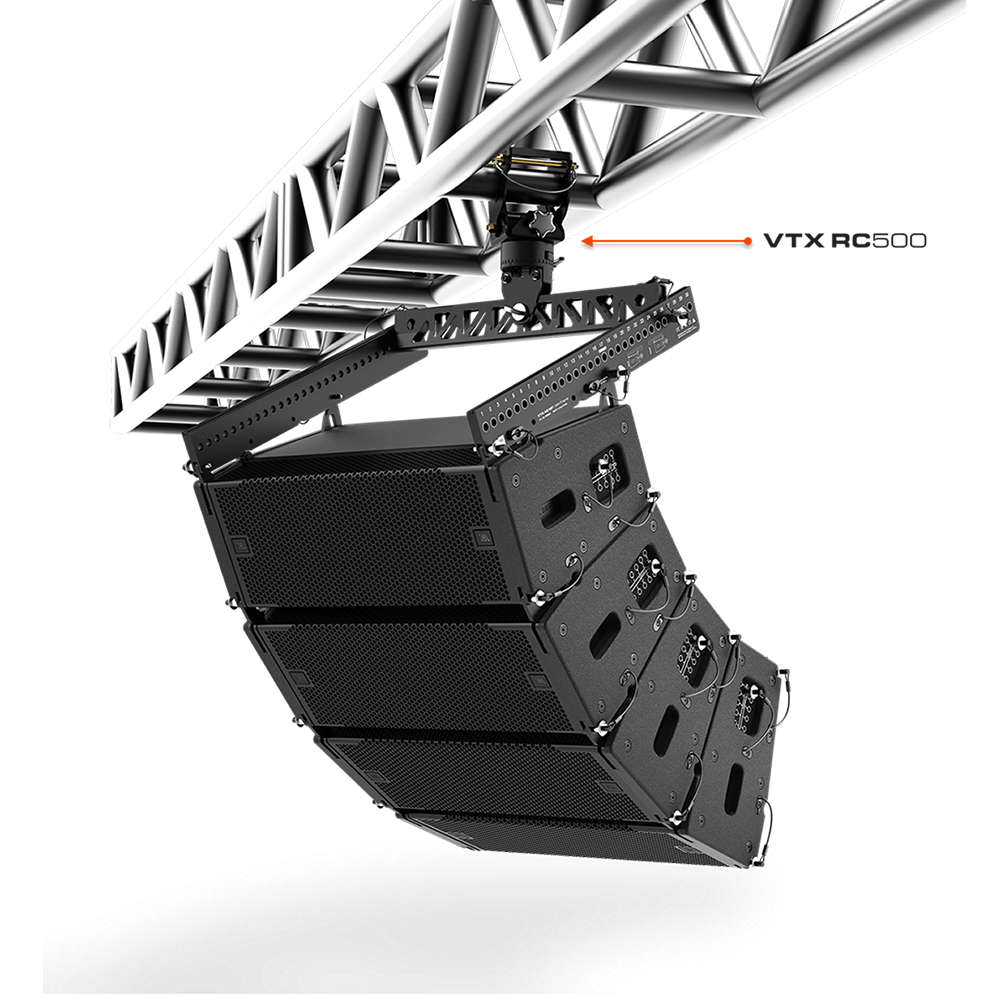

The VTX RC500 is a universal truss/pipe clamp adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of up to 500 kg (1,100 lbs) and is compatible with array frames that support 1/2-inch shackles, such as the VTX A8, VTX A6 and SRX900 AF.
An adjustable clamping mechanism allows the RC500 to be secured to a wide range of truss/pipe sizes. The included thrust bearing allows for smooth 360-degree rotation, even when loaded. 10-degree rotation marks allow for quick and easy horizontal aiming, with a locking mechanism to secure the RC500 at the desired position.
Compatible With:
VTX A6 MF
VTX A8 MF
SRX906LA AF
SRX910LA AF
The VTX RC500 is a universal truss/pipe clamp adapter designed for vertically suspending speaker arrays from standard truss structures or pipes. The RC500 supports arrays of up to 500 kg (1,100 lbs) and is compatible with array frames that support 1/2-inch shackles, such as the VTX A8, VTX A6 and SRX900 AF.
An adjustable clamping mechanism allows the RC500 to be secured to a wide range of truss/pipe sizes. The included thrust bearing allows for smooth 360-degree rotation, even when loaded. 10-degree rotation marks allow for quick and easy horizontal aiming, with a locking mechanism to secure the RC500 at the desired position.
Compatible With:
VTX A6 MF
VTX A8 MF
SRX906LA AF
SRX910LA AF
Features
- Support for up to 500 kg (1100 lbs)
- Adjustable clamping mechanism
- Pipe range: 0.5 in – 2 in
- Includes bearing for smooth 360∞ rotation
- 10-degree rotation marks for horizontal array aiming
Resources
Specifications
PDF 1.75 MB
