BEAMFORMING CEILING ARRAY MICROPHONE W/DANTE
ATND1061DAN
ON ORDER
Out of stock, please contact JPRO for delivery ETA
1 Year WARRANTY
BEAMFORMING CEILING ARRAY MICROPHONE WITH DANTE
The Audio-Technica ATND1061DAN Beamforming Ceiling Array Microphone with Dante is an ideal solution for conference rooms, boardrooms, and meeting spaces of all sizes. It can be used ...
The Audio-Technica ATND1061DAN Beamforming Ceiling Array Microphone with Dante is an ideal solution for conference rooms, boardrooms, and meeting spaces of all sizes. It can be used ...
BEAMFORMING CEILING ARRAY MICROPHONE WITH DANTE
The Audio-Technica ATND1061DAN Beamforming Ceiling Array Microphone with Dante is an ideal solution for conference rooms, boardrooms, and meeting spaces of all sizes. It can be used on its own or in multiples to accommodate larger environments. The ATND1061DAN elevates meeting room audio by precisely capturing voices while intelligently reducing distracting background noise.
Roughly the size of a wireless access point, the ATND1061DAN is easy to install, set up, and operate. Room configuration, zone setup, and other settings are managed through the user friendly Digital Microphone Manager software application.
Available in Dante™ enabled (ATND1061DAN) and Audio Technica LINK enabled (ATND1061LK) configurations, it provides flexible options for professional AV installations.
Built in digital signal processing (DSP)—including automix, acoustic echo cancellation (AEC), noise reduction, automatic gain control (AGC), and 4 band EQ—eliminates the need for external DSP hardware. Users can easily configure up to 32 customisable microphone pickup zones (including Coverage and Priority Zones) across six audio output channels using the intuitive Digital Microphone Manager software.
The microphone is certified for Microsoft Teams Rooms, Zoom Rooms, and Google Meet, and is suitable for use in authorised installations, simplifying AV integration. Installation options include flush mounting, surface mounting, and VESA compatibility, all compliant with UL 2043 standards for safe plenum installations. The package includes all necessary mounts, accessories, and an IR remote for easy muting and preset recall.
The Audio-Technica ATND1061DAN Beamforming Ceiling Array Microphone with Dante is an ideal solution for conference rooms, boardrooms, and meeting spaces of all sizes. It can be used on its own or in multiples to accommodate larger environments. The ATND1061DAN elevates meeting room audio by precisely capturing voices while intelligently reducing distracting background noise.
Roughly the size of a wireless access point, the ATND1061DAN is easy to install, set up, and operate. Room configuration, zone setup, and other settings are managed through the user friendly Digital Microphone Manager software application.
Available in Dante™ enabled (ATND1061DAN) and Audio Technica LINK enabled (ATND1061LK) configurations, it provides flexible options for professional AV installations.
Built in digital signal processing (DSP)—including automix, acoustic echo cancellation (AEC), noise reduction, automatic gain control (AGC), and 4 band EQ—eliminates the need for external DSP hardware. Users can easily configure up to 32 customisable microphone pickup zones (including Coverage and Priority Zones) across six audio output channels using the intuitive Digital Microphone Manager software.
The microphone is certified for Microsoft Teams Rooms, Zoom Rooms, and Google Meet, and is suitable for use in authorised installations, simplifying AV integration. Installation options include flush mounting, surface mounting, and VESA compatibility, all compliant with UL 2043 standards for safe plenum installations. The package includes all necessary mounts, accessories, and an IR remote for easy muting and preset recall.
FEATURES
- Ideal beamforming microphone array for conference rooms, boardrooms, and meeting spaces of any size
- Powerful onboard DSP: automix, AEC, noise reduction, AGC, and 4 band EQ
- User friendly Digital Microphone Manager for configuring single or multiple ATND1061 units
- Six output channels with up to 32 user defined pickup zones for flexible room coverage
- Output Channel 1 supports up to 16 Coverage Zones for nonpriority or unplanned participants
- Output Channels 2–6 support up to 16 Priority Zones for key participant locations
- Proprietary Voice Activity Detection (VAD) technology distinguishes voices from unwanted noises
- Exclusion zones block known noise sources via software configuration

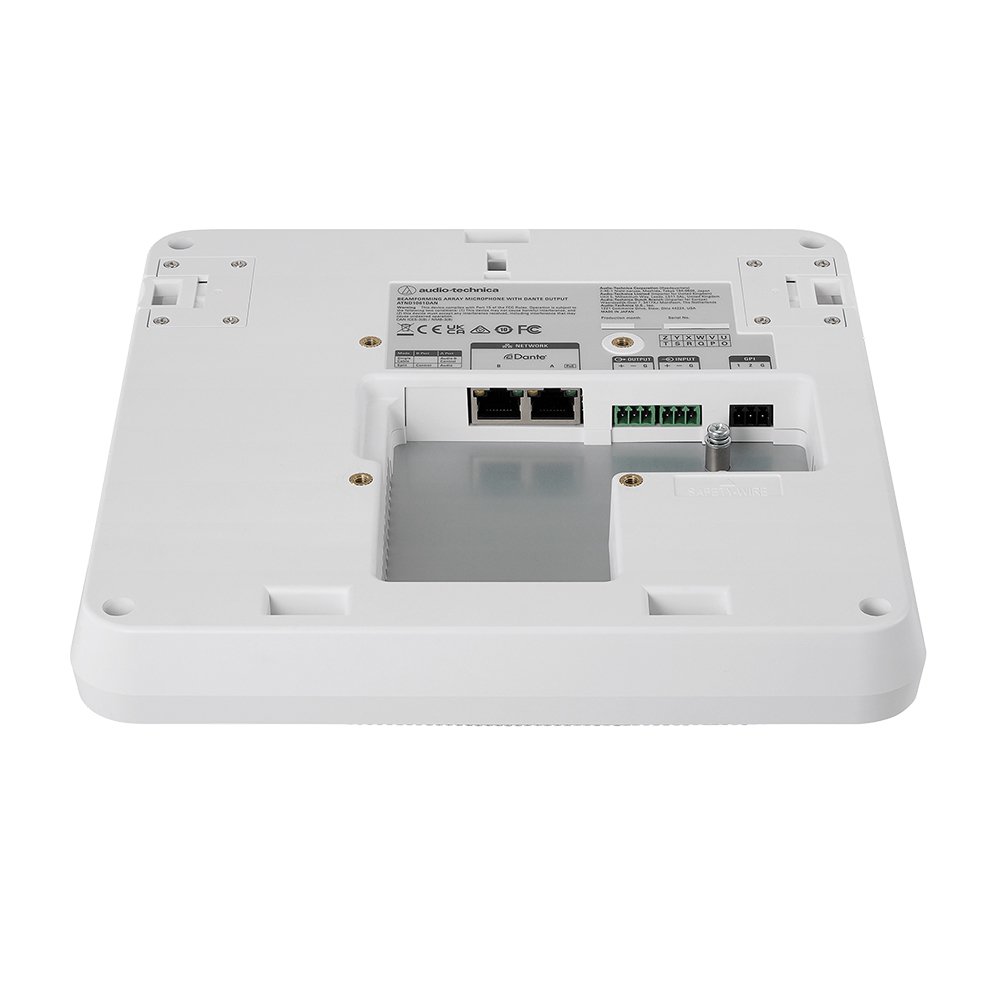

- Dual network ports with Single Cable or Split modes for Dante audio and control (ATND1061DAN)

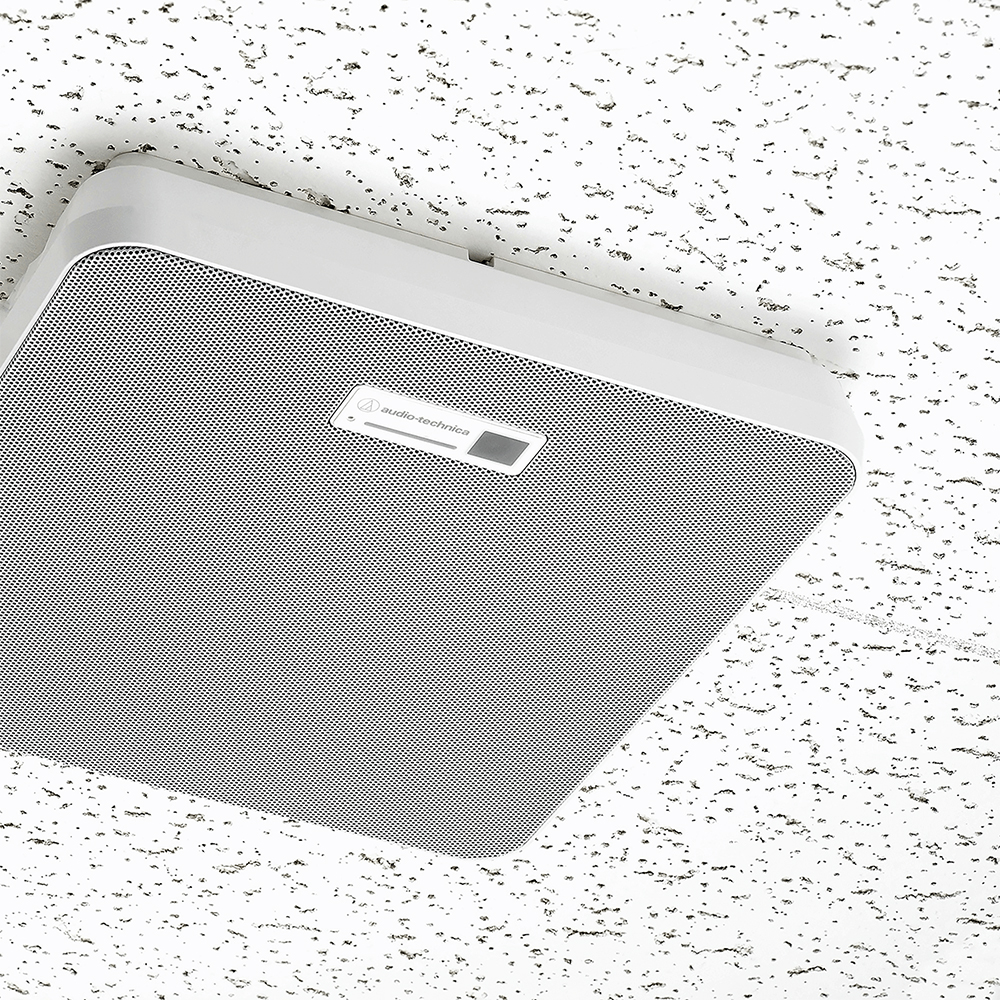

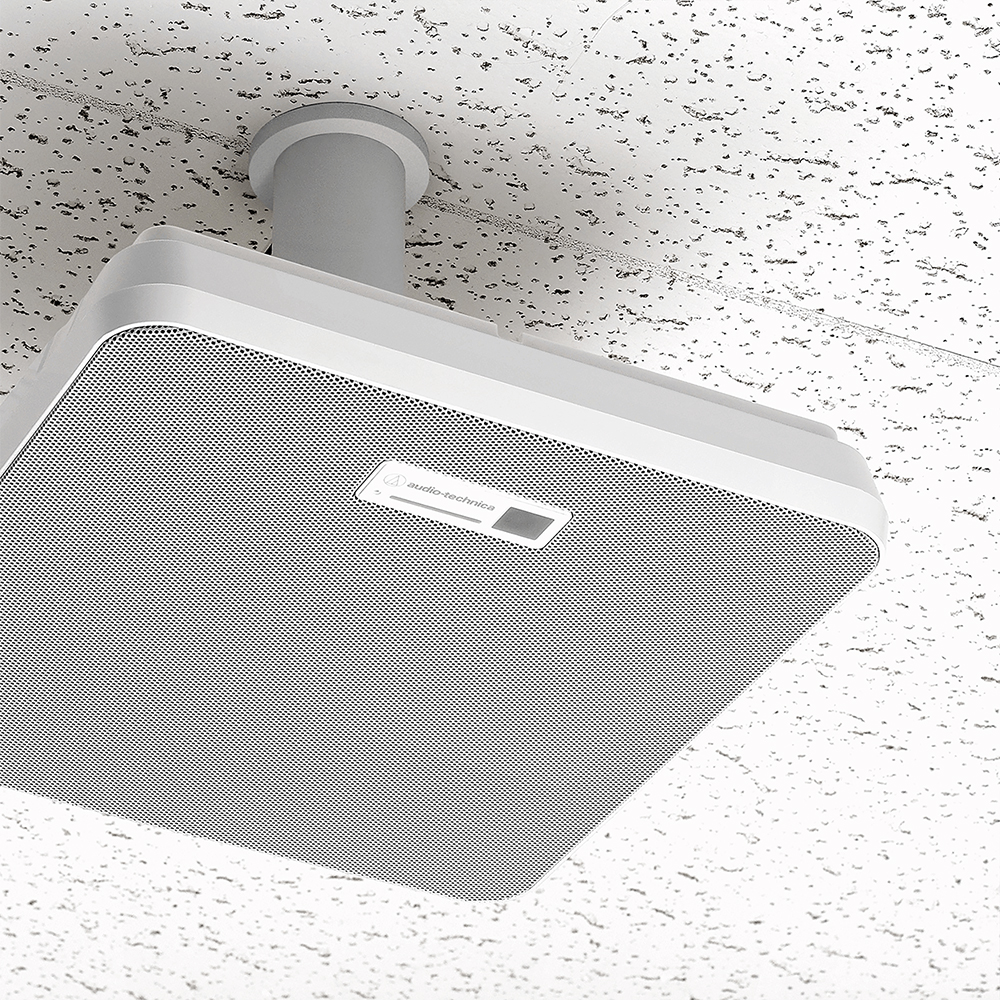

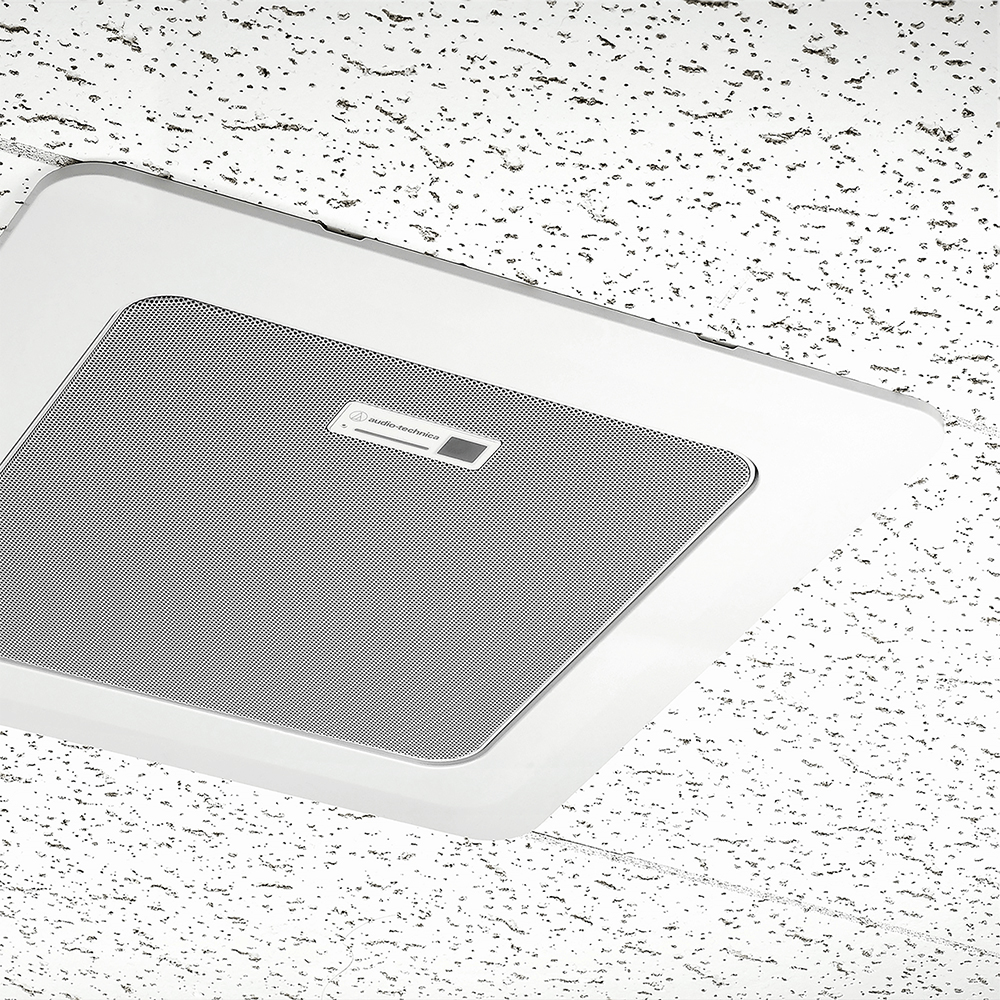

- Flexible mounting: flush, surface, or VESA in open architecture spaces
- UL 2043 compliant for safe plenum installation
- Includes tile bridge, safety wiring, and mounting hardware
- Low reflective white finish blends with most ceiling tiles
- Powered by network PoE
ATND1061 Beamforming Ceiling Array Microphone | Overview | Conferencing Audio
Original Launch Overview of ATND1061 | Beamforming Array Microphone | Audio-Technica
Resources
Specifications
PDF 2.64 MB
