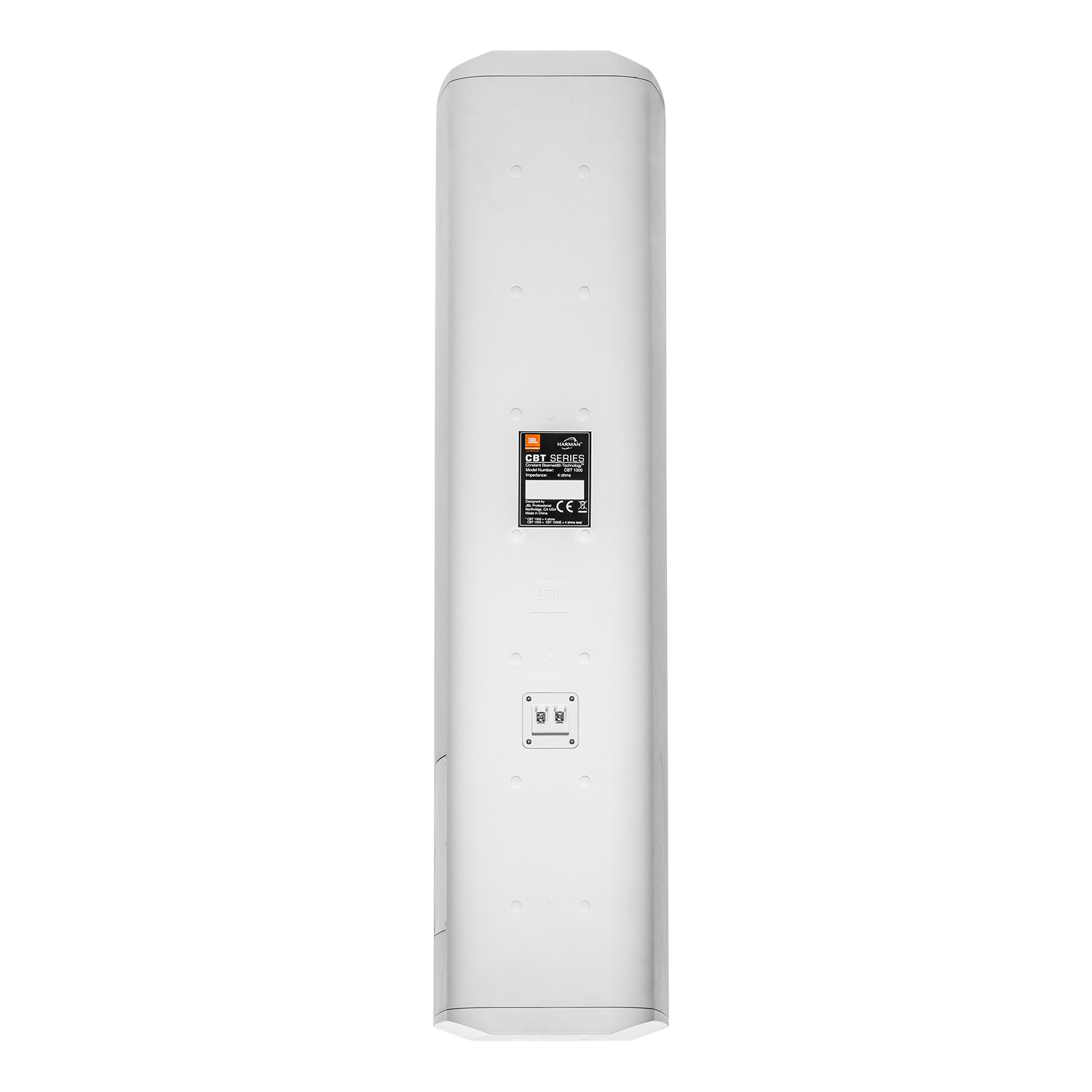

HIGH OUTPUT ARRAY LOUDSPEAKER WHITE

CBT-1000-WH
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2/3/5 Years WARRANTY
JBL CBT1000 is a High-Output Two-Way Line Array Column with Adjustable Vertical Coverage & Tapered Horizontal Waveguide



CBT1000 represents the next-generation in pattern control consistency utilizing adjustable vertical coverage and a tapered horizontal waveguide to ...
JBL CBT1000 is a High-Output Two-Way Line Array Column with Adjustable Vertical Coverage & Tapered Horizontal Waveguide

CBT1000 represents the next-generation in pattern control consistency utilizing adjustable vertical coverage and a tapered horizontal waveguide to increase the versatility of aiming the coverage of the loudspeaker to more accurately map to the room geometry in a wide variety of listening spaces.

The CBT Series (Constant Beamwidth Technology) are two-way line array column loudspeakers that are designed for venues that would typically use larger point-and-shoot speakers.

The CBT Series is especially beneficial in venues with tricky acoustics or buildings that require discreet sound reinforcement, such as historical sites. The CBT beamforming and amplitude tapering technology allows for an even coverage of sound from the front to the back of the venue, effectively reducing the volume needed by a conventional loudspeaker to cover the same area.

Features
Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.
Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2”) high-excursion LF drivers arranged coaxially.
Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out of coverage lobing.
Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing.
Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.
Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Swivel (pan)/tilt wall bracket included.

JBL PRO VIDEOS:

EXPLORE CONSTANT BEAMWIDTH TECHNOLOGY IN CBT PASSIVE COLUMNS


AN INFORMATIVE OVERVIEW OF THE CBT RANGE AND SPECS


EXPLORING SPEECH INTELLIGIBILITY AND STI INDEX


JBL PROFESSIONAL CONTROL CONTRACTOR LOUDSPEAKERS UNIQUE DESIGN and PERFORMANCE
