(DS5) Desk Stand Power Module w/ RGB LED and Local/Remote Switching for ES925 Modular Gooseneck Mic

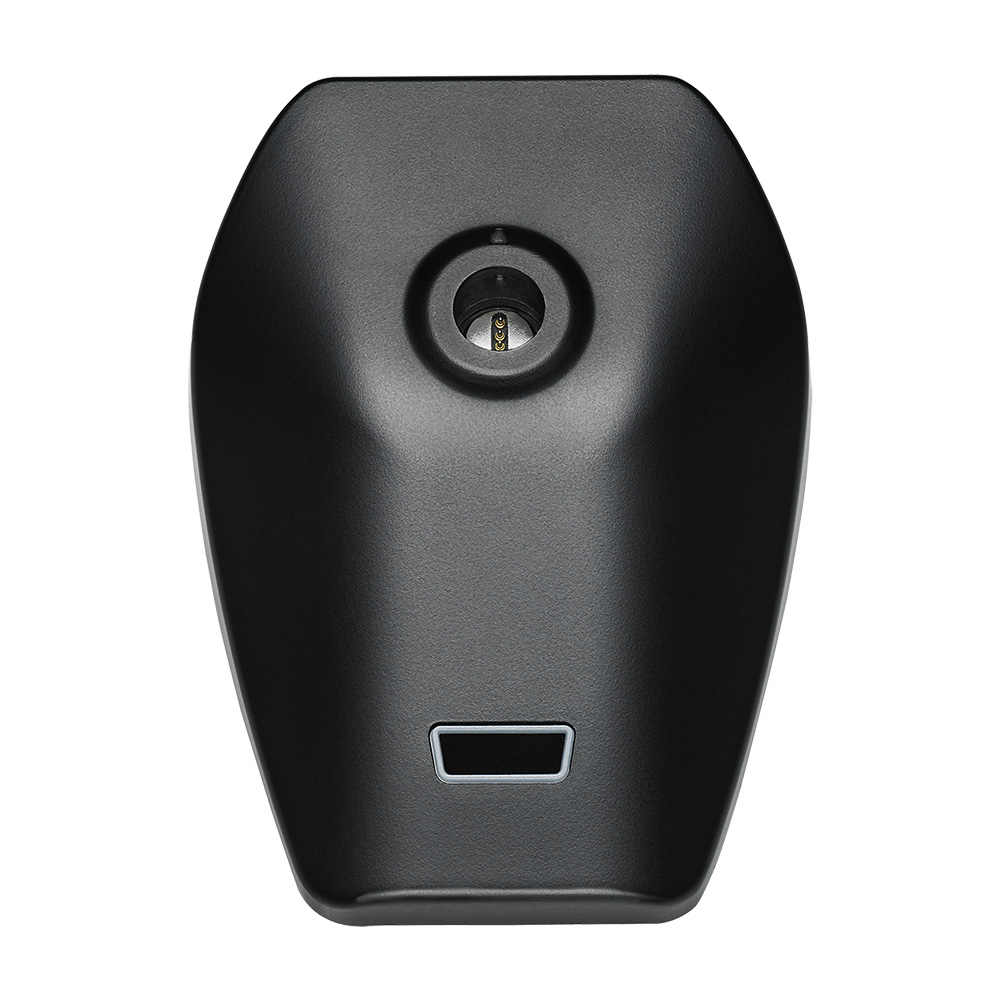

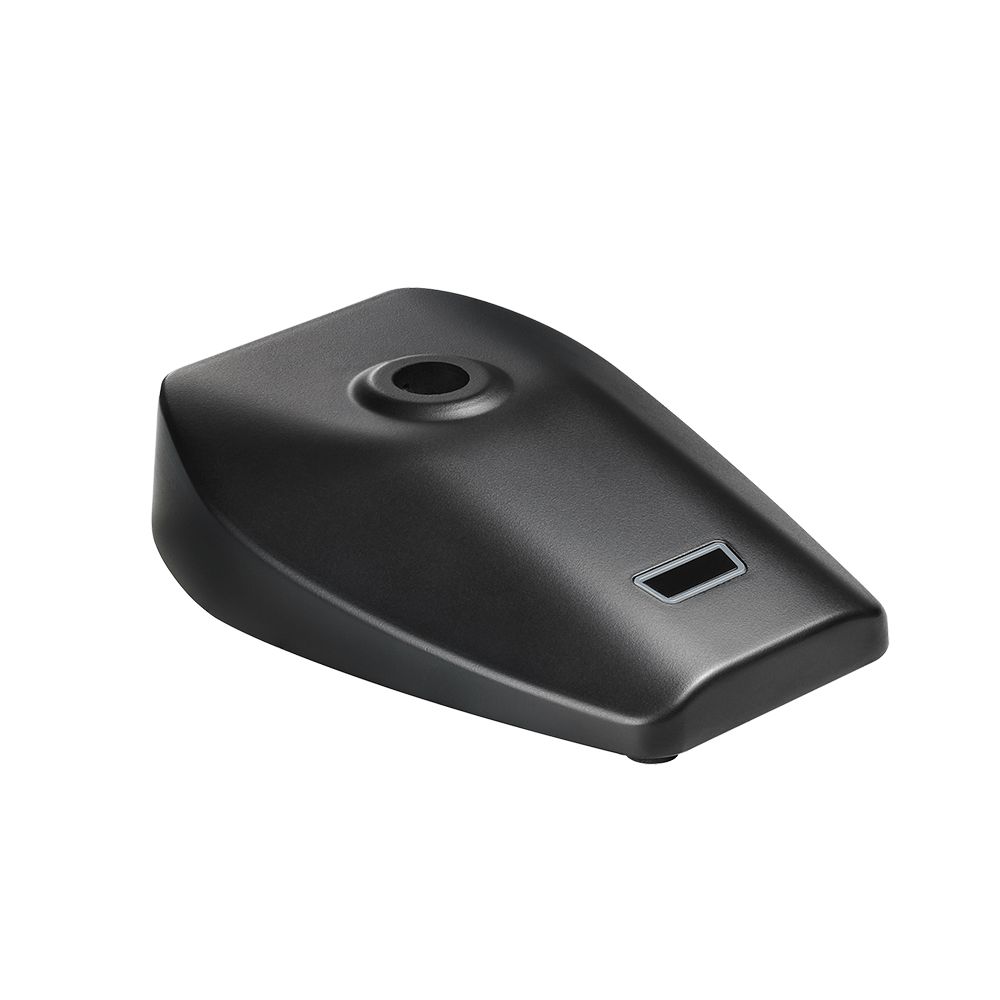

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options.

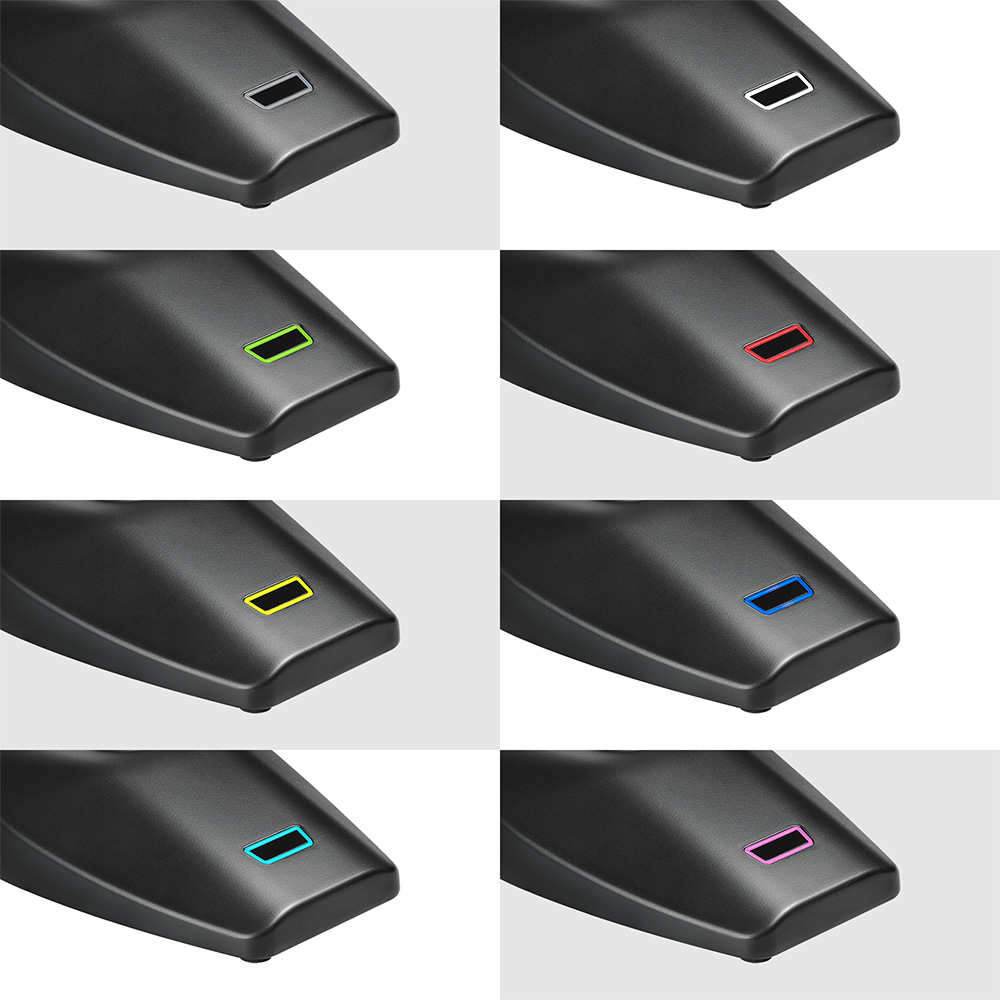

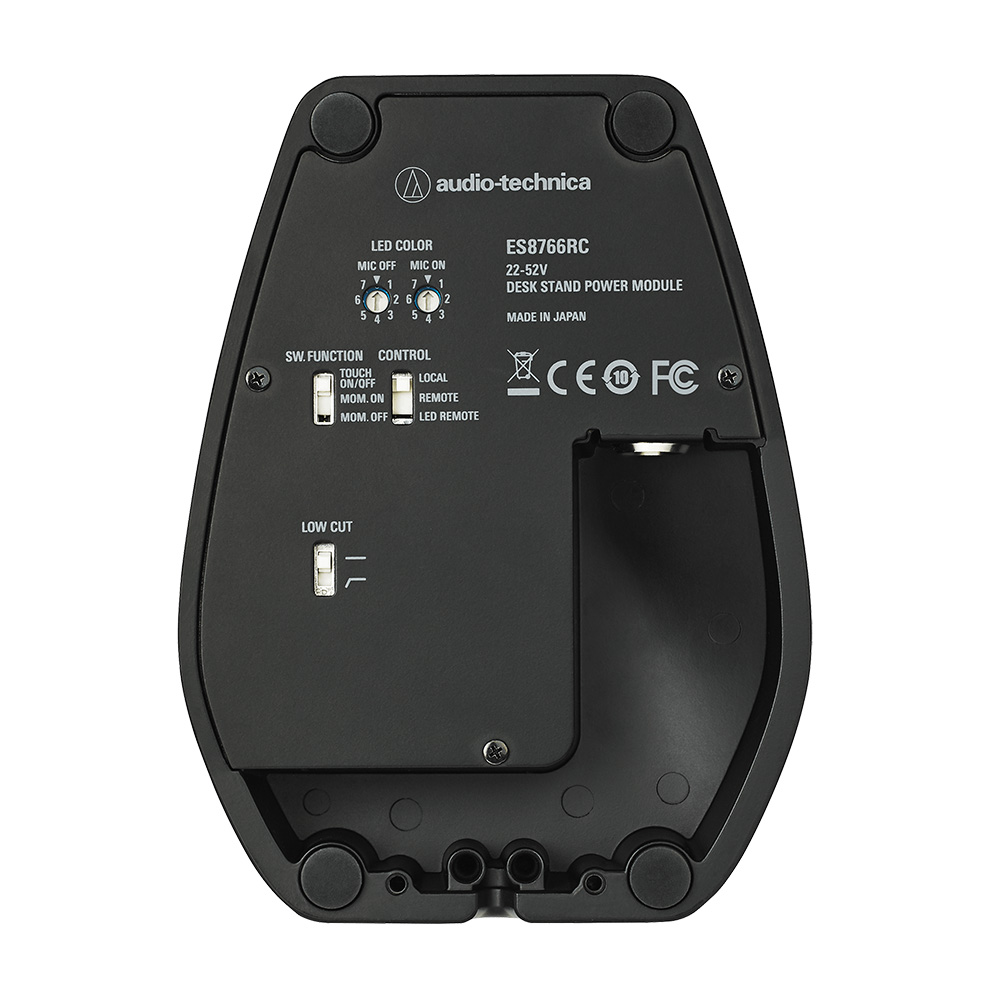

Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.

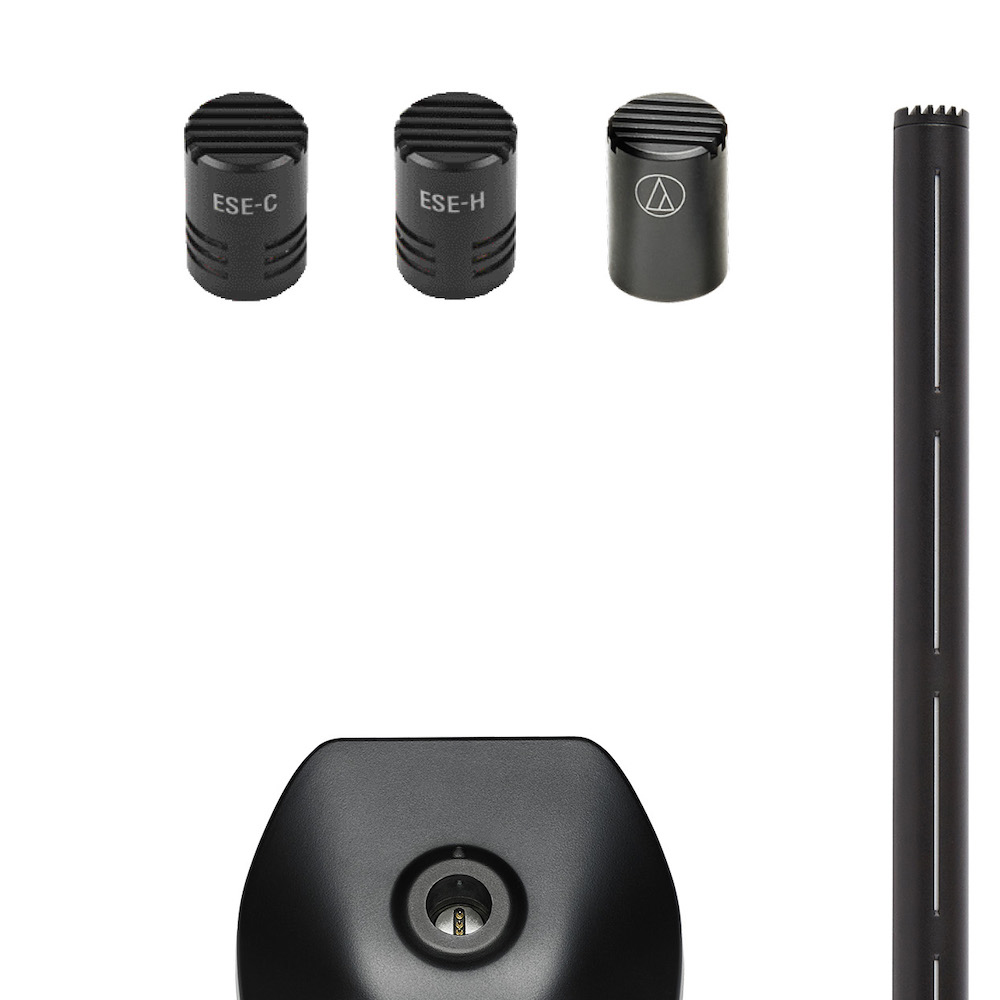

The ES925 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a condenser microphone element, gooseneck, and a choice of different power modules, along with windscreen, clamp and shockmount.

All elements are interchangeable with other ES modular microphone components within the range, allowing you to select the following elements to create a product tailored to your exact specifications:
- power module types (XLR, FM3, FM5, DS5)
- gooseneck lengths (in stock: 6", 12", 18" and to order: 15", 21", 24")
- microphone polar patterns (line + gradient, hyper cardioid, cardioid, omnidirectional)

The ES925 microphone’s low-profile element attaches to the small-diameter gooseneck, which offers highly flexible positioning with an unobtrusive appearance. An essential foam windscreen protects against plosive sounds (‘popping’), and the choices of power module offer a solution for any installation.
