DANTE AVIO 4CH INSTALL INPUT ADAPTER
AVIO-A-4IN-EB
IN STOCK
Delivery in 2-3 days within NZ
1 Year WARRANTY
DANTE AVIO 4CH INPUT INSTALLATION ADAPTER
Installation-friendly Dante-to-analog adapters for Pro AV integrators
Add Networked Audio to Any Install
Dante AVIO Install adapters provide a compact, cost-effective way to bring analog ...
Installation-friendly Dante-to-analog adapters for Pro AV integrators
Add Networked Audio to Any Install
Dante AVIO Install adapters provide a compact, cost-effective way to bring analog ...
DANTE AVIO 4CH INPUT INSTALLATION ADAPTER
Installation-friendly Dante-to-analog adapters for Pro AV integrators
Add Networked Audio to Any Install
Dante AVIO Install adapters provide a compact, cost-effective way to bring analog audio onto Dante networks, extending the life of existing equipment while supporting scalable system growth. Available in 2-Ch and 4-Ch input and output models, including a 2-Ch In/2-Ch Out option for bidirectional connectivity, they simplify deployment with PoE-powered operation and deliver exceptional bit-perfect, ultra-low latency audio performance.
Part of the Dante Family
Dante AVIO Install adapters are part of the trusted Dante family of networked AV solutions, leveraging the familiar Dante control and management platform. Configuration and audio routing to and from AVIOs is managed through Dante Controller, while advanced features such as remote monitoring, user access control, cross-subnet routing, and API integration can be enabled with Dante Director or Dante Domain Manager.
Installation-friendly Dante-to-analog adapters for Pro AV integrators
Add Networked Audio to Any Install
Dante AVIO Install adapters provide a compact, cost-effective way to bring analog audio onto Dante networks, extending the life of existing equipment while supporting scalable system growth. Available in 2-Ch and 4-Ch input and output models, including a 2-Ch In/2-Ch Out option for bidirectional connectivity, they simplify deployment with PoE-powered operation and deliver exceptional bit-perfect, ultra-low latency audio performance.
Part of the Dante Family
Dante AVIO Install adapters are part of the trusted Dante family of networked AV solutions, leveraging the familiar Dante control and management platform. Configuration and audio routing to and from AVIOs is managed through Dante Controller, while advanced features such as remote monitoring, user access control, cross-subnet routing, and API integration can be enabled with Dante Director or Dante Domain Manager.
FEATURES
- Analogue to Dante Adapter
- 4 in / 0 out

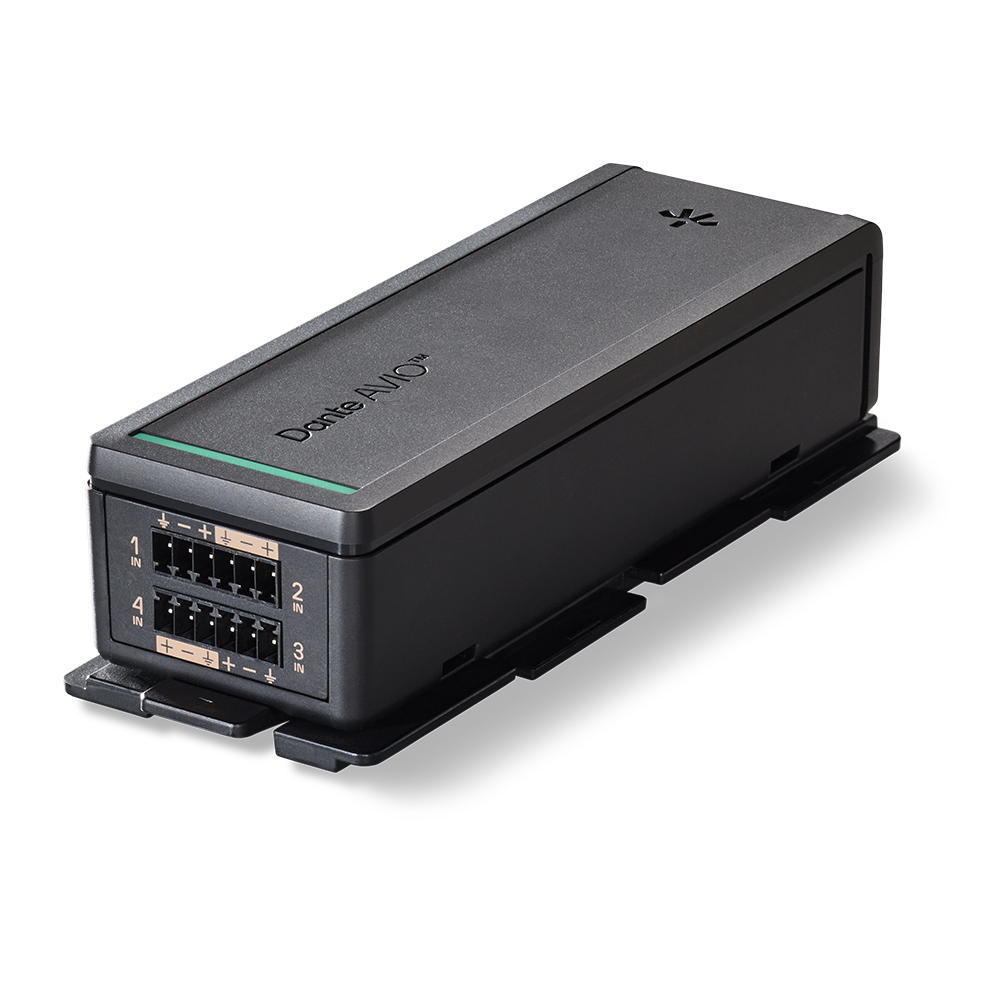

- Euroblock terminals - Industry-standard screw terminal connectors for fixed, permanent wiring in any install environment.

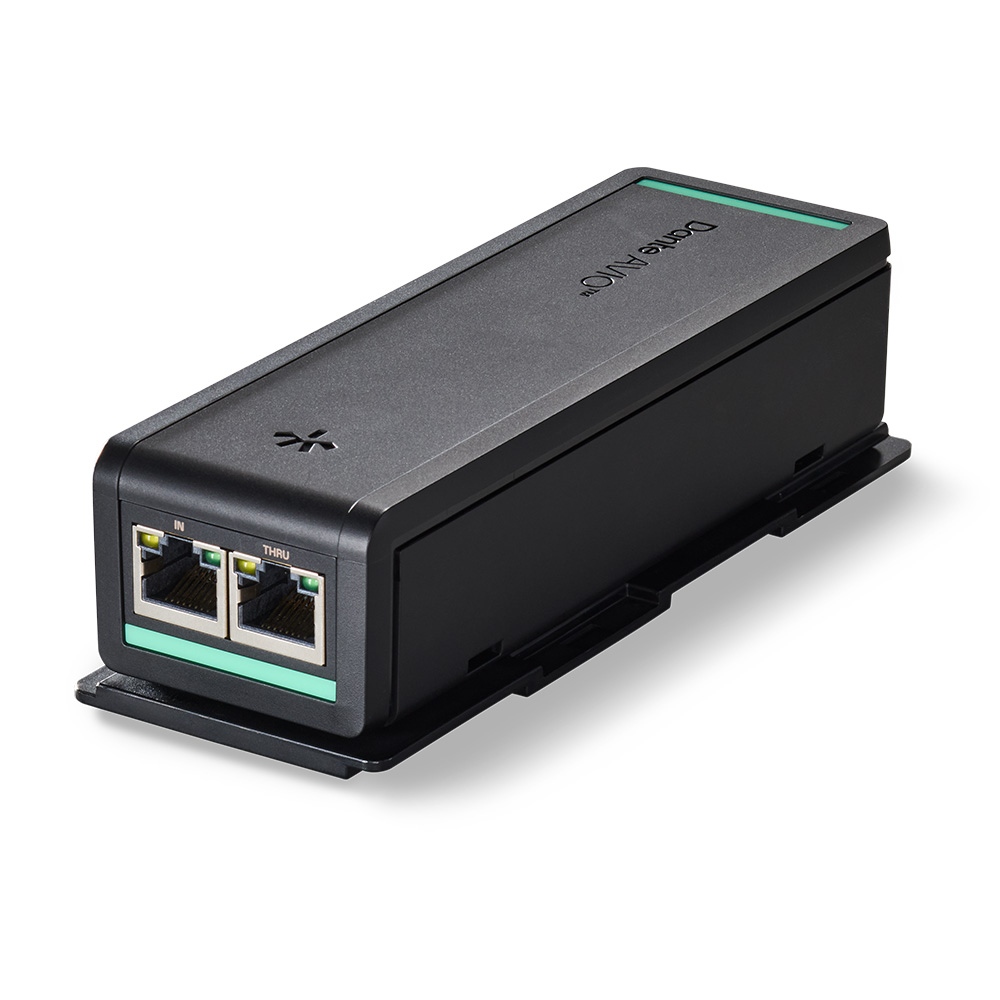

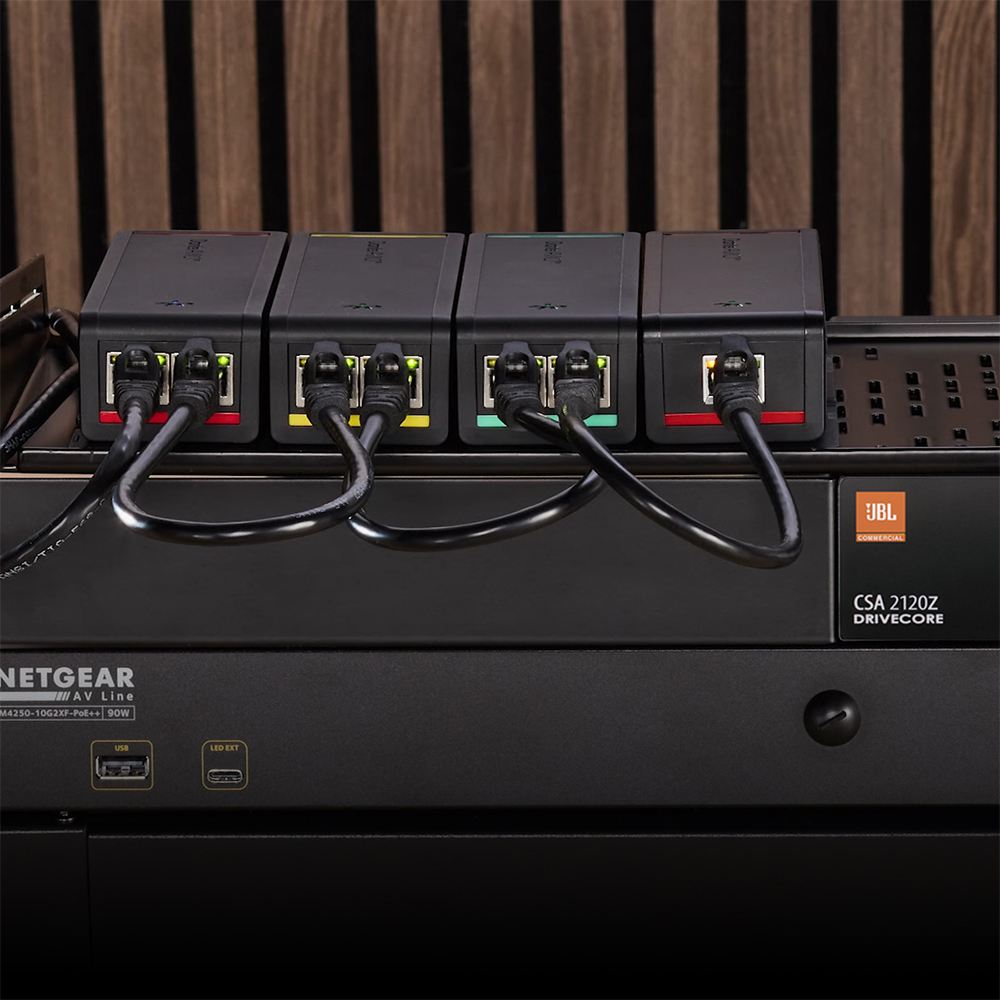

- Power over Ethernet - Power, audio, & control over a single network cable, with daisy chain support for up to four adapters per network drop, reducing switch port usage.
- ClickGrid System - Snap multiple AVIO adapters together for tidy installs.

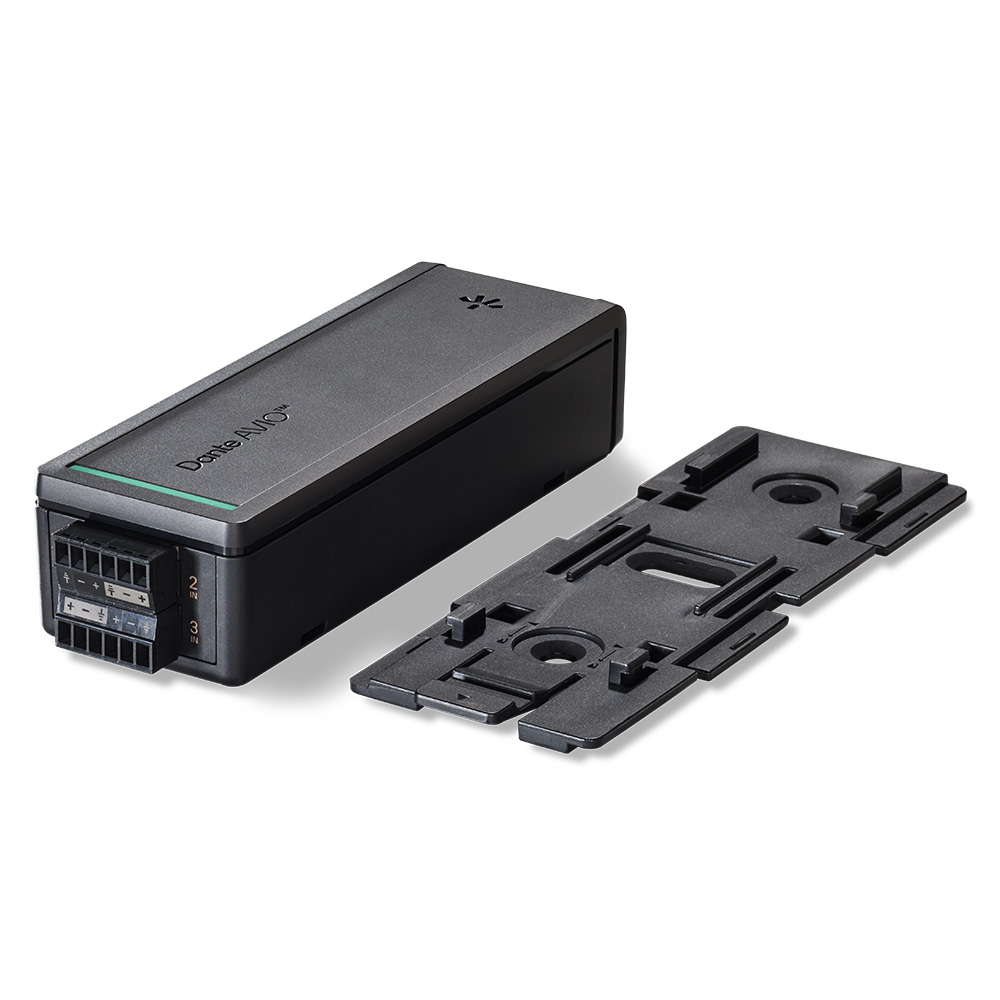

- Mounting Bracket - Snap multiple adapters together for surface, rack, or post installation, with mounting hardware included out of the box.
- Uncompressed Audio - 4Ch @44.1/48 kHz, 2Ch @88.2/96 kHz
APPLICATION EXAMPLES
- Multi-Zone Audio
- Hospitality and Retail
- Education
- Meeting Rooms
AVIO Video: How to Daisy Chain 2 and 4-Channel Dante AVIO Install Adapters
Resources
Specifications
PDF 1.43 MB
