POLE MOUNT ACCESSORY FOR SRX906LA
SRX906LA-PM
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2 Years WARRANTY
The SRX906LA Pole Mount is an adapter frame that enables SRX906LA arrays to be stacked on top of standard 35 mm extension rods and speaker stands. The rear angle selection bar allows for angles ranging ...

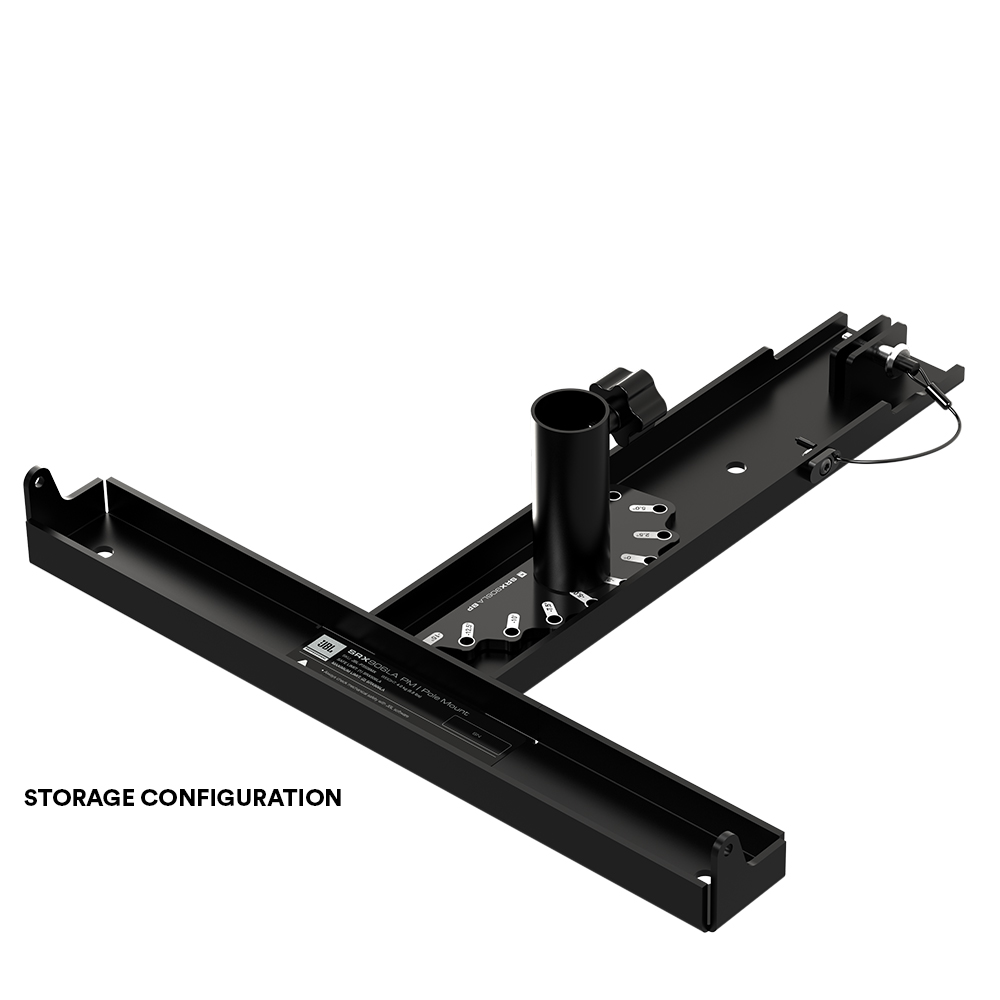

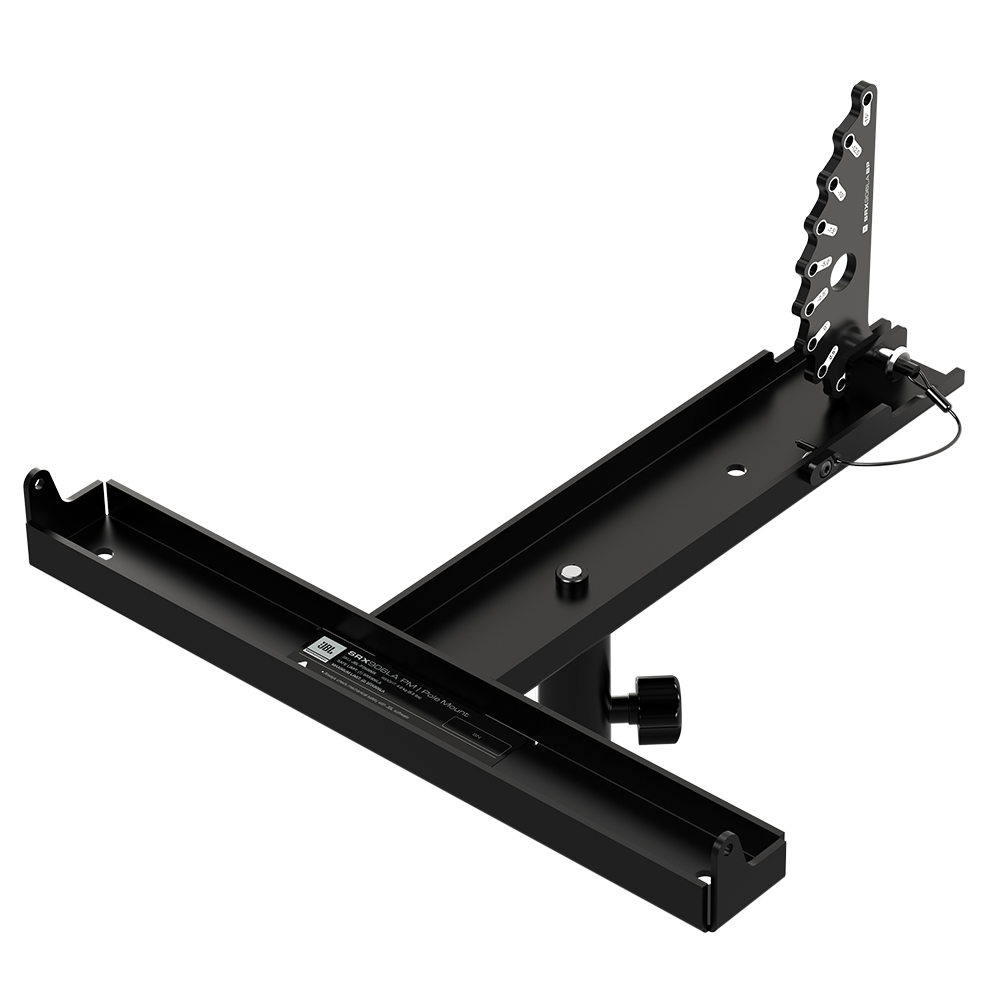

The SRX906LA Pole Mount is an adapter frame that enables SRX906LA arrays to be stacked on top of standard 35 mm extension rods and speaker stands. The rear angle selection bar allows for angles ranging from -15 to +5 degrees. The three included M10 throughholes can be used to permanently attach an SRX906LA array to other support structures.
FEATURES
- Enables pole mounting SRX906LA
- Universal 35 mm pole mount
- Angle range: -15 degrees to +5 degrees
- Support for up to (2) SRX906LA Cabinets
IN THE BOX
- (1) Pole Mount Frame
- (1) M10 Pole Mount
- (1) Angle Bracket
JBL SRX900 SERIES POWERED LINE ARRAY VIDEO RESOURCES:
JBL SRX900 Series Technical Overview
JBL SRX900 Powered Line Array Series Quick Look
JBL SRX900 Series Rigging Tutorial
JBL SRX900 Series De-Rigging Tutorial
JBL SRX900 Series Groundstacking Tutorial
