INTELLIVOX 1.80M ACTIVE BEAM SHAPING COLUMN EXT FREQ W/DANTE
DSX180D
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2 Years WARRANTY
1.80M ACTIVE DIGITAL BEAM SHAPING COLUMN LOUDSPEAKER ARRAY WITH EXTENDED FREQUENCY RANGE AND DANTE
The Intellivox DSX180D is an active column loudspeaker array designed for sound reinforcement and public address in reverberant spaces ...
The Intellivox DSX180D is an active column loudspeaker array designed for sound reinforcement and public address in reverberant spaces ...
1.80M ACTIVE DIGITAL BEAM SHAPING COLUMN LOUDSPEAKER ARRAY WITH EXTENDED FREQUENCY RANGE AND DANTE

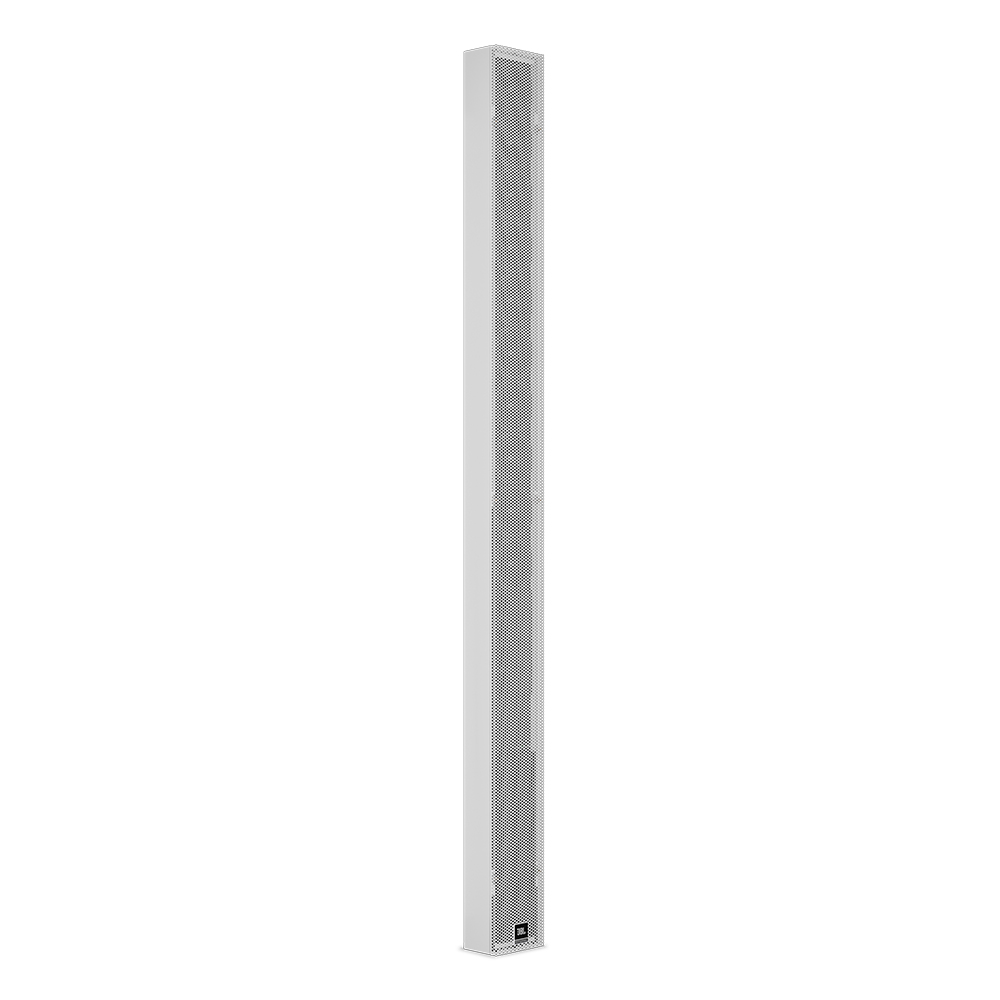

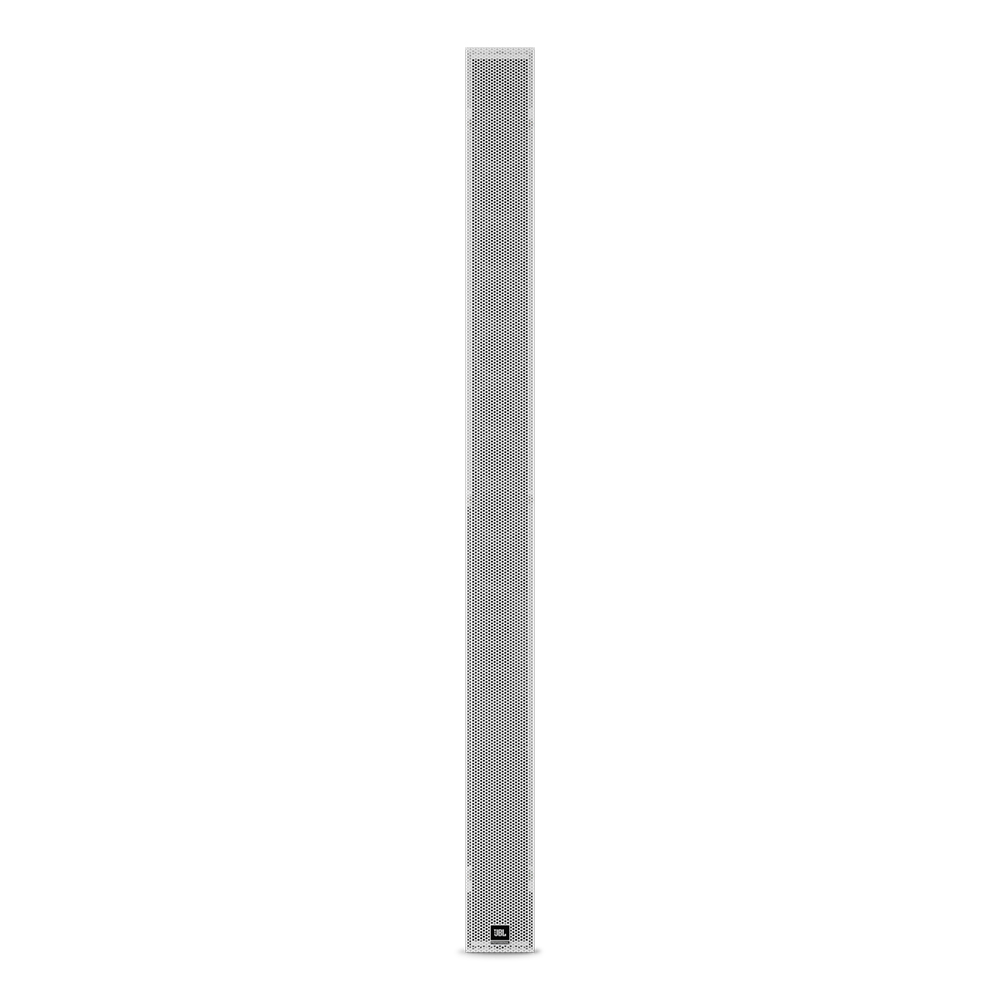

The Intellivox DSX180D is an active column loudspeaker array designed for sound reinforcement and public address in reverberant spaces such as houses of worship, lecture halls, theatres, conference facilities, and museums. It features JBL’s Digital Directivity Synthesis (DDS) Beam Shaping DSP technology, which allows installers to precisely define listener coverage areas with minimal reflections and maximum direct‑to‑reverberant ratio for clear, intelligible sound – even in the most challenging acoustic spaces
The Intellivox DSX180D delivers superb speech intelligibility and music reproduction. It provides full-range vertical beam control and broad horizontal dispersion, with consistent frequency response and SPL throughout, for uniform audience coverage. This Intellivox loudspeaker is typically used to deliver sound coverage over distances up to 25 meters, with additional range possible depending on the acoustic conditions of the space.
For integration flexibility, the Intellivox DSX180D includes Dante® and analog audio inputs alongside IP control connectivity. A built-in DSP provides processing for DDS beam shaping along with volume control, parametric EQ, user presets, and more. Setup, control, status monitoring, and performance optimization are available with the free WinControl and DDA (Digital Directivity Analysis) software tools.
Intellivox column loudspeaker arrays are ideal for architecturally sensitive environments with a slim, unobtrusive design that requires no mechanical aiming and can be recessed to blend seamlessly into buildings of all ages and styles. The finish for the standard enclosure is white, and custom color options are available to fit the loudspeaker’s surroundings
The Intellivox DSX180D is an active column loudspeaker array designed for sound reinforcement and public address in reverberant spaces such as houses of worship, lecture halls, theatres, conference facilities, and museums. It features JBL’s Digital Directivity Synthesis (DDS) Beam Shaping DSP technology, which allows installers to precisely define listener coverage areas with minimal reflections and maximum direct‑to‑reverberant ratio for clear, intelligible sound – even in the most challenging acoustic spaces
The Intellivox DSX180D delivers superb speech intelligibility and music reproduction. It provides full-range vertical beam control and broad horizontal dispersion, with consistent frequency response and SPL throughout, for uniform audience coverage. This Intellivox loudspeaker is typically used to deliver sound coverage over distances up to 25 meters, with additional range possible depending on the acoustic conditions of the space.
For integration flexibility, the Intellivox DSX180D includes Dante® and analog audio inputs alongside IP control connectivity. A built-in DSP provides processing for DDS beam shaping along with volume control, parametric EQ, user presets, and more. Setup, control, status monitoring, and performance optimization are available with the free WinControl and DDA (Digital Directivity Analysis) software tools.
Intellivox column loudspeaker arrays are ideal for architecturally sensitive environments with a slim, unobtrusive design that requires no mechanical aiming and can be recessed to blend seamlessly into buildings of all ages and styles. The finish for the standard enclosure is white, and custom color options are available to fit the loudspeaker’s surroundings
FEATURES
- JBL Digital Directivity Synthesis (DDS) Beam Shaping technology enables unrivaled vertical beam control with unlimited coverage possibilities
- Superb speech intelligibility and high-fidelity music reproduction
- Dual-redundant Dante audio connectivity plus analog line inputs
- Integrated DSP with volume control, delay, eight-band parametric EQ, eight user-definable presets, compression, and automatic gain control
- Built-in ambient sensing microphone
- IP connectivity for control and management
- Built-in redundancy and system monitoring features including automatic input switchover and pilot tone detection
- Free WinControl software for setup, control, and monitoring
- Simulation available with JBL DDA (Digital Directivity Analysis), as well as CATT-Acoustic, ODEON, and EASE
