BSS custom control module

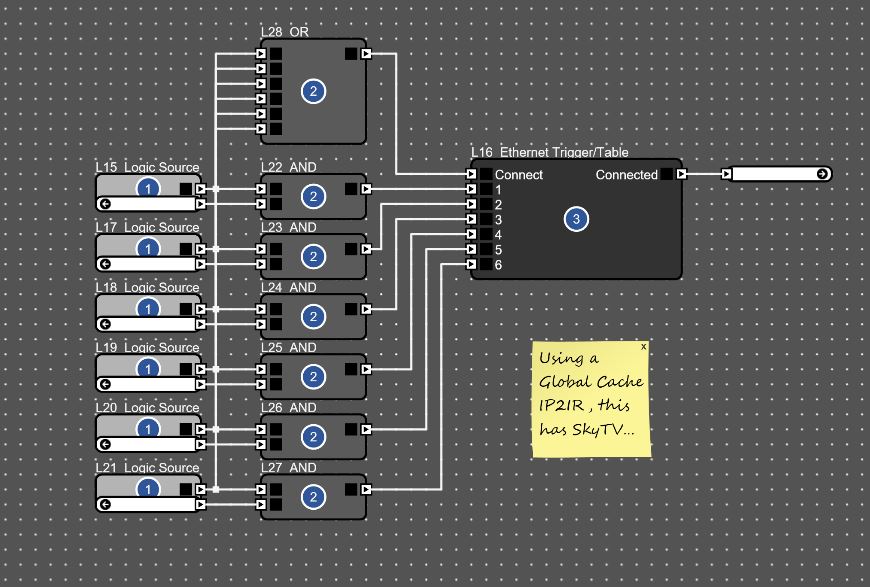

This module makes use of a Global Cache IP2IR (IP2IR-P Specs | Global Caché (globalcache.com)) to send IR signals captured from a SkyTV remote to do Channel Up and Down through a BSS BLU. The module can be modified easily to add additional remote commands. This module makes use of all 3x IR Transmitters for a total of 3x Decoders.
The content provided is supplied in good nature. JPRO cannot be held responsible if this info doesn’t resolve a issue or provide a solution to a problem.
BSS custom control module for Epsom Projector
This module has been made to control Epson projectors, the commands in the example are commonly used commands but can be changed to fit the requirement of the job. Download the Epson API for reference.
The content provided is supplied in good nature. JPRO cannot be held responsible if this info doesn’t resolve a issue or provide a solution to a problem.
Troubleshooting Audio Architect screen sizing issue
Some users have reported a screen sizing issue with Audio Architect, this commonly happens on newer machines with high resolution screens and scaling. The video demonstrates how to resolve the issue.
The content provided is supplied in good nature. JPRO cannot be held responsible if this info doesn’t resolve a issue or provide a solution to a problem.

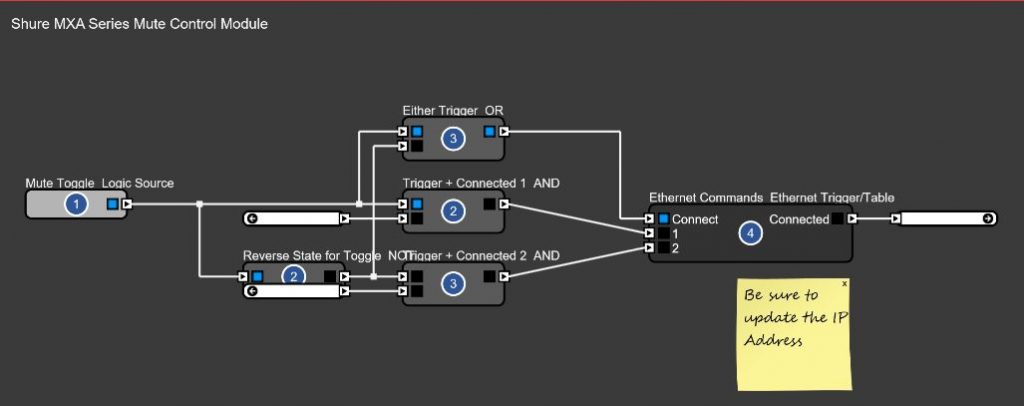

This module allows BSS to control a Shure MXA series microphone (eg: Shure MXA910) and triggers a mute/unmute state which in a Shure default mode will trigger the LED to change on the microphone. It can be used to trigger other things on the microphones and be used as a template to expand on.
The content provided is supplied in good nature. JPRO cannot be held responsible if this info doesn’t resolve a issue or provide a solution to a problem.
